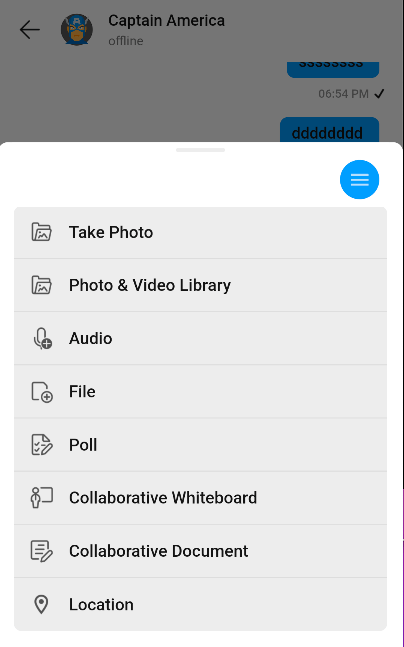

CometChatActionSheet is a DraggableScrollableSheet which shows each ActionItem and returns the ActionItem that is clicked on . You can customize the appearance of CometChatActionSheet too.

How to integrate CometChatActionSheet ?

Since CometChatActionSheet is a DraggableScrollableSheet , it can be called directly by using showCometChatActionSheet method. CometChatActionSheet includes various parameters to customize its UI.

Usage

Dart

ActionItem? item = await showCometChatActionSheet(
  context: context,
  actionItems: <actionList>,
  titleStyle: TextStyle(
    fontSize: 17,
    fontWeight: FontWeight.w500,
    color: cometChatTheme.palette.getAccent()
  ),
  backgroundColor: cometChatTheme.palette.getBackground(),
  iconBackground: cometChatTheme.palette.getAccent100(),
  layoutIconColor: cometChatTheme.palette.getPrimary()
);

Properties

Parameters	Type	Description
context	BuildContext	Used to set the location in the widget where the `AcionSheet needs to be shown`
backgroundColor	Color	Used to set background color
actionItems	List<ActionItem>	Used to set list of action items
iconBackground	Color	Used to set icon background color
title	String	Used to set title
titleStyle	TextStyle	Used to set title style
isLayoutModeIconVisible	bool	Used to toggle visibility of layout mode icon
layoutModeIcon	IconData	used to set the icon to display
layoutIconColor	Color	Used to set layout Mode Icon Color
isTitleVisible	bool	Used to toggle title visibility
isGridLayout	bool	Used to toggle between list view or grid view
alertShapeBorder	ShapeBorder	Used to shape `ActionSheet`

ActionItem

ActionItem is the model class used to pass data at different places such as CometChatActionSheet.A list of ActionItem is passed to the CometChatActionSheet which renders it according to the styling parameters passed

Properties

Parameters	Type	Description
id	String	Used to uniquely identify each `ActionItem`
title	String	Used to set the title visible against each `ActionItem`
iconUrl	String	Used to set IconUrl
iconUrlPackageName	String	Used to set IconUrl package name , used only when
titleStyle	TextStyle	Used to set title style
iconBackground	Color	Used to set icon background
iconCornerRadius	double	Used to set icon corner radius
background	Color	Used to set background color
cornerRadius	double	Used to set corner radius
onItemClick	dynamic	an parameter to hold any extra data with each `ActionItem` , internally used to set functions which are invoked later

If dart compiler is not able to identify ActionItem from the chat ui kit package because its conflicting with other imports, alias can be created as import 'package:flutter_chat_ui_kit/flutter_chat_ui_kit.dart' as uikit; > > and used like uikit.ActionItem wherever needed

Dart

// new Alias created
import 'package:flutter_chat_ui_kit_flutter_chat_ui_kit.dart' as uikit;

uikit.ActionItem  item1  = uikit.ActionItem(
    id:<id1>,
    title: <title1>,
    background: <backgroundColor>,
    cornerRadius: <cornerRadius>,
    onItemClick: (){
      // any function you want to perform
    }
);

uikit.ActionItem  item2  = uikit.ActionItem(
    id:<id2>,
    title: <title2>,
    background: <backgroundColor>,
    cornerRadius: <cornerRadius>,
    onItemClick: (){
      // any function you want to perform
    }
);

List<uikit.ActionItem> actionList = [item1, item2];

uikit.ActionItem? item = await showCometChatActionSheet(
  context: context,
  actionItems: actionList,
  titleStyle: TextStyle(
    fontSize: 17,
    fontWeight: FontWeight.w500,
    color: cometChatTheme.palette.getAccent()
  ),
  backgroundColor: cometChatTheme.palette.getBackground(),
  iconBackground: cometChatTheme.palette.getAccent100(),
  layoutIconColor: cometChatTheme.palette.getPrimary()
);
